Here is a simple walkthrough on uploading a file through SAPUI5 interface and saving it as a GOS attachment in SAP system. This example uses purchase order business object (BUS2012). If you plan to use another type of document, you should find corresponding business object and change it accordingly.

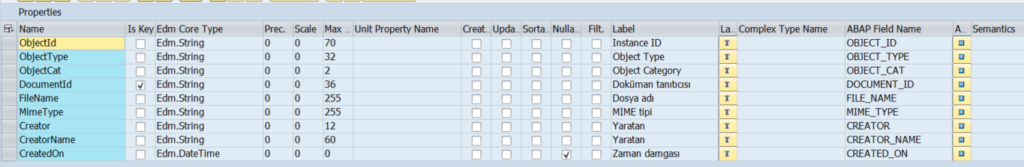

Create a structure to transfer media info between backend and frontend.
Create function modules to upload, download and list attachments.
FUNCTION z_upload_attachment.
*"----------------------------------------------------------------------
*"*"Local Interface:
*" IMPORTING
*" VALUE(IV_OBJECT_ID) TYPE SIBFBORIID
*" VALUE(IV_FILENAME) TYPE SO_OBJ_DES
*" VALUE(IV_VALUE) TYPE XSTRING
*" EXPORTING
*" VALUE(ES_ATTACHMENT) TYPE ZST_ATTACHMENT
*" VALUE(ES_RETURN) TYPE BAPIRET2
*"----------------------------------------------------------------------
DATA ls_folder_id TYPE soodk.
CALL FUNCTION 'SO_FOLDER_ROOT_ID_GET'
EXPORTING
region = 'B'
IMPORTING
folder_id = ls_folder_id
EXCEPTIONS
communication_failure = 1
owner_not_exist = 2
system_failure = 3
x_error = 4
OTHERS = 5.
DATA lv_extension TYPE sood-file_ext.
CALL FUNCTION 'TRINT_FILE_GET_EXTENSION'
EXPORTING
filename = iv_filename
IMPORTING
extension = lv_extension.
DATA: lv_output_length TYPE i,
lt_solix TYPE solix_tab.
CALL FUNCTION 'SCMS_XSTRING_TO_BINARY'
EXPORTING
buffer = iv_value
IMPORTING
output_length = lv_output_length
TABLES
binary_tab = lt_solix.
DATA lt_soli TYPE soli_tab.
CALL FUNCTION 'SO_SOLIXTAB_TO_SOLITAB'
EXPORTING
ip_solixtab = lt_solix
IMPORTING
ep_solitab = lt_soli.
DATA: ls_object_hd_change TYPE sood1,
lt_objhead TYPE STANDARD TABLE OF soli.
ls_object_hd_change-objla = sy-langu.
ls_object_hd_change-objnam = 'MESSAGE'.
ls_object_hd_change-objdes = iv_filename.
ls_object_hd_change-file_ext = lv_extension.
ls_object_hd_change-objlen = lv_output_length.
DATA lv_mimetype TYPE mimetypes-type.
CALL FUNCTION 'SDOK_MIMETYPE_GET'
EXPORTING
extension = lv_extension
IMPORTING
mimetype = lv_mimetype.
lt_objhead = VALUE #( ( line = '&SO_FILENAME=' && iv_filename )
( line = '&SO_FORMAT=BIN' )
( line = '&SO_CONTTYPE=' && lv_mimetype ) ).
DATA ls_object_id TYPE soodk.
CALL FUNCTION 'SO_OBJECT_INSERT'
EXPORTING
folder_id = ls_folder_id
object_hd_change = ls_object_hd_change
object_type = 'EXT'
IMPORTING
object_id = ls_object_id
TABLES
objcont = lt_soli
objhead = lt_objhead
EXCEPTIONS
active_user_not_exist = 1
communication_failure = 2
component_not_available = 3
dl_name_exist = 4
folder_not_exist = 5
folder_no_authorization = 6
object_type_not_exist = 7
operation_no_authorization = 8
owner_not_exist = 9
parameter_error = 10
substitute_not_active = 11
substitute_not_defined = 12
system_failure = 13
x_error = 14
OTHERS = 15.
IF sy-subrc <> 0.
es_return-type = 'E'.
es_return-id = sy-msgid.
es_return-number = sy-msgno.
es_return-message_v1 = sy-msgv1.
es_return-message_v2 = sy-msgv2.
es_return-message_v3 = sy-msgv3.
es_return-message_v4 = sy-msgv4.
IF es_return-id IS INITIAL.
es_return-id = 'SV'.
es_return-number = '171'.
ENDIF.
RETURN.
ENDIF.
es_attachment-object_type = 'BUS2012'.
es_attachment-object_cat = 'BO'.
es_attachment-document_id = ls_folder_id-objtp && ls_folder_id-objyr && ls_folder_id-objno &&
ls_object_id-objtp && ls_object_id-objyr && ls_object_id-objno.
es_attachment-file_name = iv_filename.
es_attachment-mime_type = lv_mimetype.
DATA: ls_object_a TYPE sibflporb,
ls_object_b TYPE sibflporb.
ls_object_a-instid = iv_object_id.
ls_object_a-typeid = 'BUS2012'.
ls_object_a-catid = 'BO'.
ls_object_b-instid = es_attachment-document_id.
ls_object_b-typeid = 'MESSAGE'.
ls_object_b-catid = 'BO'.
TRY.
cl_binary_relation=>create_link(
EXPORTING
is_object_a = ls_object_a
is_object_b = ls_object_b
ip_reltype = 'ATTA' ).
CATCH cx_obl_parameter_error.
CATCH cx_obl_model_error.
CATCH cx_obl_internal_error.
ENDTRY.
ENDFUNCTION.FUNCTION z_download_attachment.
*"----------------------------------------------------------------------
*"*"Local Interface:
*" IMPORTING
*" VALUE(IV_DOCUMENT_ID) TYPE DOCUMENTID
*" EXPORTING
*" VALUE(EV_VALUE) TYPE XSTRING
*" VALUE(EV_MIME_TYPE) TYPE STRING
*" VALUE(EV_FILENAME) TYPE SO_OBJ_DES
*"----------------------------------------------------------------------
DATA: ls_document_data TYPE sofolenti1,
lt_content TYPE STANDARD TABLE OF solix.
CALL FUNCTION 'SO_DOCUMENT_READ_API1'
EXPORTING
document_id = CONV sofolenti1-doc_id( iv_document_id )
IMPORTING
document_data = ls_document_data
TABLES
contents_hex = lt_content
EXCEPTIONS
document_id_not_exist = 1
operation_no_authorization = 2
x_error = 3
OTHERS = 4.
CALL FUNCTION 'SCMS_BINARY_TO_XSTRING'
EXPORTING
input_length = CONV i( ls_document_data-doc_size )
IMPORTING
buffer = ev_value
TABLES
binary_tab = lt_content
EXCEPTIONS
failed = 1
OTHERS = 2.
DATA lv_mimetype TYPE mimetypes-type.
CALL FUNCTION 'SDOK_MIMETYPE_GET'
EXPORTING
extension = ls_document_data-obj_type
IMPORTING
mimetype = lv_mimetype.
ev_mime_type = lv_mimetype.
ev_filename = ls_document_data-obj_descr.
ENDFUNCTION.FUNCTION z_get_attachments.
*"----------------------------------------------------------------------
*"*"Local Interface:
*" IMPORTING
*" VALUE(IV_OBJECT_ID) TYPE SIBFBORIID
*" EXPORTING
*" VALUE(ET_ATTACHMENT) TYPE ZTT_ATTACHMENT
*"----------------------------------------------------------------------
TRY.
cl_binary_relation=>read_links_of_objects(
EXPORTING
it_objects = VALUE #( ( instid = iv_object_id typeid = 'BUS2012' catid = 'BO' ) )
IMPORTING
et_links_a = DATA(lt_links) ).
CATCH cx_obl_model_error.
CATCH cx_obl_parameter_error.
CATCH cx_obl_internal_error.
ENDTRY.
LOOP AT lt_links ASSIGNING FIELD-SYMBOL(<ls_link>).
SELECT SINGLE * FROM sood
WHERE objtp = @<ls_link>-instid_b+17(3)
AND objyr = @<ls_link>-instid_b+20(2)
AND objno = @<ls_link>-instid_b+22
INTO @DATA(ls_sood).
IF sy-subrc = 0.
APPEND INITIAL LINE TO et_attachment ASSIGNING FIELD-SYMBOL(<ls_attach>).
<ls_attach>-object_id = <ls_link>-instid_a.
<ls_attach>-object_type = <ls_link>-typeid_a.
<ls_attach>-object_cat = <ls_link>-catid_a.
<ls_attach>-document_id = <ls_link>-instid_b.
<ls_attach>-file_name = ls_sood-objdes.
<ls_attach>-creator = ls_sood-crono.
<ls_attach>-creator_name = ls_sood-cronam.
<ls_attach>-created_on = <ls_link>-utctime.
DATA lv_mimetype TYPE mimetypes-type.
CALL FUNCTION 'SDOK_MIMETYPE_GET'
EXPORTING
extension = ls_sood-file_ext
IMPORTING
mimetype = lv_mimetype.
<ls_attach>-mime_type = lv_mimetype.
CLEAR lv_mimetype.
ENDIF.
ENDLOOP.
ENDFUNCTION.Create related entity type and mark it as media.
Redefine the “DEFINE” method of MPC_EXT class.
METHOD define.
super->define( ).
model->get_entity_type( iv_entity_name = `Attachment` )->get_property( iv_property_name = `MimeType` )->set_as_content_type( ).
ENDMETHOD.Redefine the “/IWBEP/IF_MGW_APPL_SRV_RUNTIME~CREATE_STREAM” method of DPC_EXT class.
METHOD /iwbep/if_mgw_appl_srv_runtime~create_stream.
DATA(lv_entity_set_name) = io_tech_request_context->get_entity_set_name( ).
CASE lv_entity_set_name.
WHEN 'AttachmentSet'.
DATA: lv_object_id TYPE sibfboriid,
lv_filename TYPE so_obj_des,
lv_file_id TYPE soodk,
ls_attachment TYPE zst_attachment,
ls_return TYPE bapiret2.
SPLIT iv_slug AT ';' INTO lv_filename lv_object_id.
CALL FUNCTION 'Z_UPLOAD_ATTACHMENT'
EXPORTING
iv_object_id = lv_object_id
iv_filename = lv_filename
iv_value = is_media_resource-value
IMPORTING
es_attachment = ls_attachment
es_return = ls_return.
IF ls_return-type = 'E'.
DATA(lo_exception) = NEW /iwbep/cx_mgw_busi_exception( ).
lo_exception->get_msg_container( )->add_message_from_bapi( is_bapi_message = ls_return iv_message_target = CONV string( ls_return-field ) ).
RAISE EXCEPTION lo_exception.
ENDIF.
copy_data_to_ref( EXPORTING is_data = ls_attachment CHANGING cr_data = er_entity ).
ENDCASE.
ENDMETHOD.Redefine the “/IWBEP/IF_MGW_APPL_SRV_RUNTIME~GET_STREAM” method of DPC_EXT class.
METHOD /iwbep/if_mgw_appl_srv_runtime~get_stream.
DATA ls_stream TYPE ty_s_media_resource.
DATA(lv_entity_set_name) = io_tech_request_context->get_entity_set_name( ).
DATA(lt_keys) = io_tech_request_context->get_keys( ).
CASE lv_entity_set_name.
WHEN 'AttachmentSet'.
DATA: lv_document_id TYPE documentid,
lv_filename TYPE so_obj_des.
lv_document_id = lt_keys[ name = 'DOCUMENT_ID' ]-value.
CALL FUNCTION 'Z_DOWNLOAD_ATTACHMENT'
EXPORTING
iv_document_id = lv_document_id
IMPORTING
ev_value = ls_stream-value
ev_mime_type = ls_stream-mime_type
ev_filename = lv_filename.
DATA ls_lheader TYPE ihttpnvp.
lv_filename = escape( val = lv_filename format = cl_abap_format=>e_url ).
ls_lheader-name = 'Content-Disposition'.
ls_lheader-value = 'outline; filename=”' && lv_filename && '”;'.
set_header( is_header = ls_lheader ).
copy_data_to_ref( EXPORTING is_data = ls_stream
CHANGING cr_data = er_stream ).
ENDCASE.
ENDMETHOD.Add UploadSet control to your view.
<mvc:View xmlns:html="http://www.w3.org/1999/xhtml" xmlns:mvc="sap.ui.core.mvc" xmlns="sap.m" xmlns:f="sap.ui.layout.form"
xmlns:core="sap.ui.core" controllerName="co.arteis.sospo.controller.Create" displayBlock="true">
<App>
<pages>
<Page id="page" title="{i18n>title}" showFooter="true" floatingFooter="true" busy="createView>/page/busy" enableScrolling="true"
showNavButton="true" navButtonPress=".onNavButtonPress">
<content>
<upload:UploadSet id="UploadSet" instantUpload="false" showIcons="true" visible="{worklistView>/page/editable}" terminationEnabled="true"
maxFileNameLength="55" beforeUploadStarts="onBeforeUploadStarts" uploadCompleted="onUploadCompleted" class="sapUiResponsiveMargin"/>
</content>
<footer>
<OverflowToolbar>
<ToolbarSpacer/>
<Button text="{i18n>PlaceOrder}" type="Emphasized" press=".onOrderPress" visible="{createView>/page/editable}"/>
</OverflowToolbar>
</footer>
</Page>
</pages>
</App>
</mvc:View>Set upload url in onInit function of controller.
onInit: function() {
var oViewModel = new JSONModel({
page: {
busy: false,
editable: true
},
data: {
items: [{}],
attachments: []
}
});
this.setModel(oViewModel, "createView");
this.byId("UploadSet").setUploadUrl(this.getOwnerComponent().getModel().sServiceUrl + "/AttachmentSet");
},Add event handler functions of UploadSet to controller.
startUpload: function() {
var oUploadSet = this.byId("UploadSet");
var cFiles = oUploadSet.getIncompleteItems().length;
if (cFiles > 0) {
oUploadSet.upload();
}
},
onBeforeUploadStarts: function(oEvent) {
var oUploadSet = oEvent.getSource();
var oItemToUpload = oEvent.getParameter("item");
var oCustomerHeaderToken = new sap.ui.core.Item({
key: "x-csrf-token",
text: this.getModel().getSecurityToken()
});
// Header Slug
var oCustomerHeaderSlug = new sap.ui.core.Item({
key: "slug",
text: oItemToUpload.getFileName() + ";" + this._documentNumber
});
oUploadSet.removeAllHeaderFields();
oUploadSet.addHeaderField(oCustomerHeaderToken);
oUploadSet.addHeaderField(oCustomerHeaderSlug);
},
onUploadCompleted: function(oEvent) {
this.getModel("worklistView").refresh(true);
},Finally, call startUpload function after your document is created.
onOrderPress: function(oEvent) {
var oViewModel = this.getModel("createView");
oViewModel.setProperty("/page/busy", true);
var aItPoItemSet = oViewModel.getProperty("/data/items").map(function(oItem) {
return {
Matnr: oItem.Matnr,
Menge: this.convertToFloat(oItem.Menge, 2),
Brtwr: this.convertToFloat(oItem.Brtwr, 2),
TaxPercent: oItem.TaxPercent
};
}.bind(this));
var oDocument = {
Application: "SOSPO",
Aedat: oViewModel.getProperty("/data/Aedat"),
Ihrez: oViewModel.getProperty("/data/Ihrez"),
ItPoItemSet: aItPoItemSet
};
this.getView().getModel().create("/IsPoHeadSet", oDocument, {
success: function(oData, oResponse) {
oViewModel.setProperty("/page/editable", false);
this._documentNumber = oData.Ebeln;
this.startUpload();
oViewModel.setProperty("/page/busy", false);
sap.m.MessageToast.show(this.getResourceBundle().getText("savedMessage"));
}.bind(this),
error: function(oError) {
oViewModel.setProperty("/page/busy", false);
}.bind(this)
});
},
